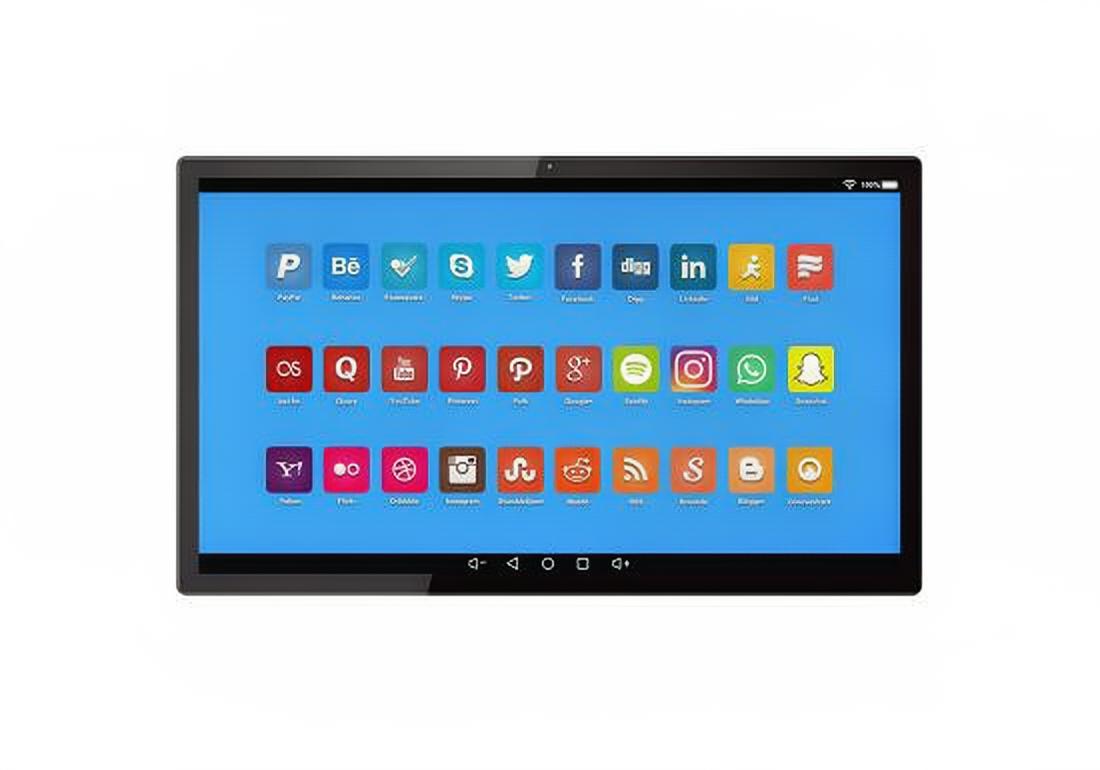

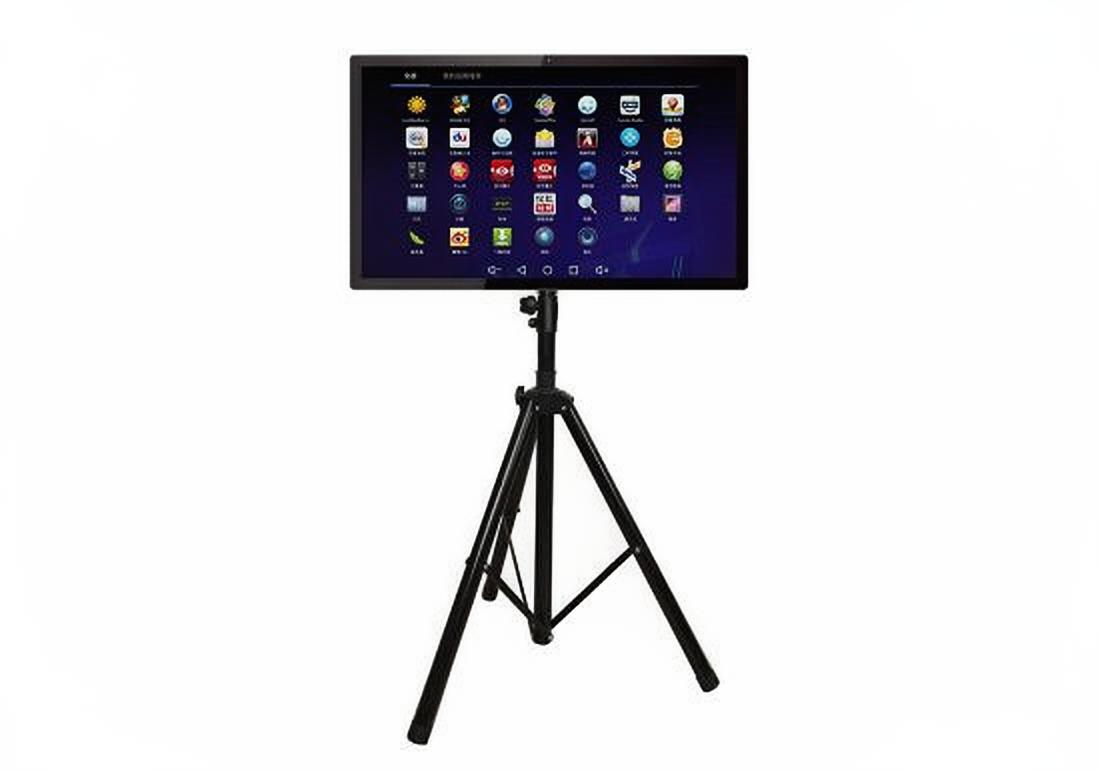

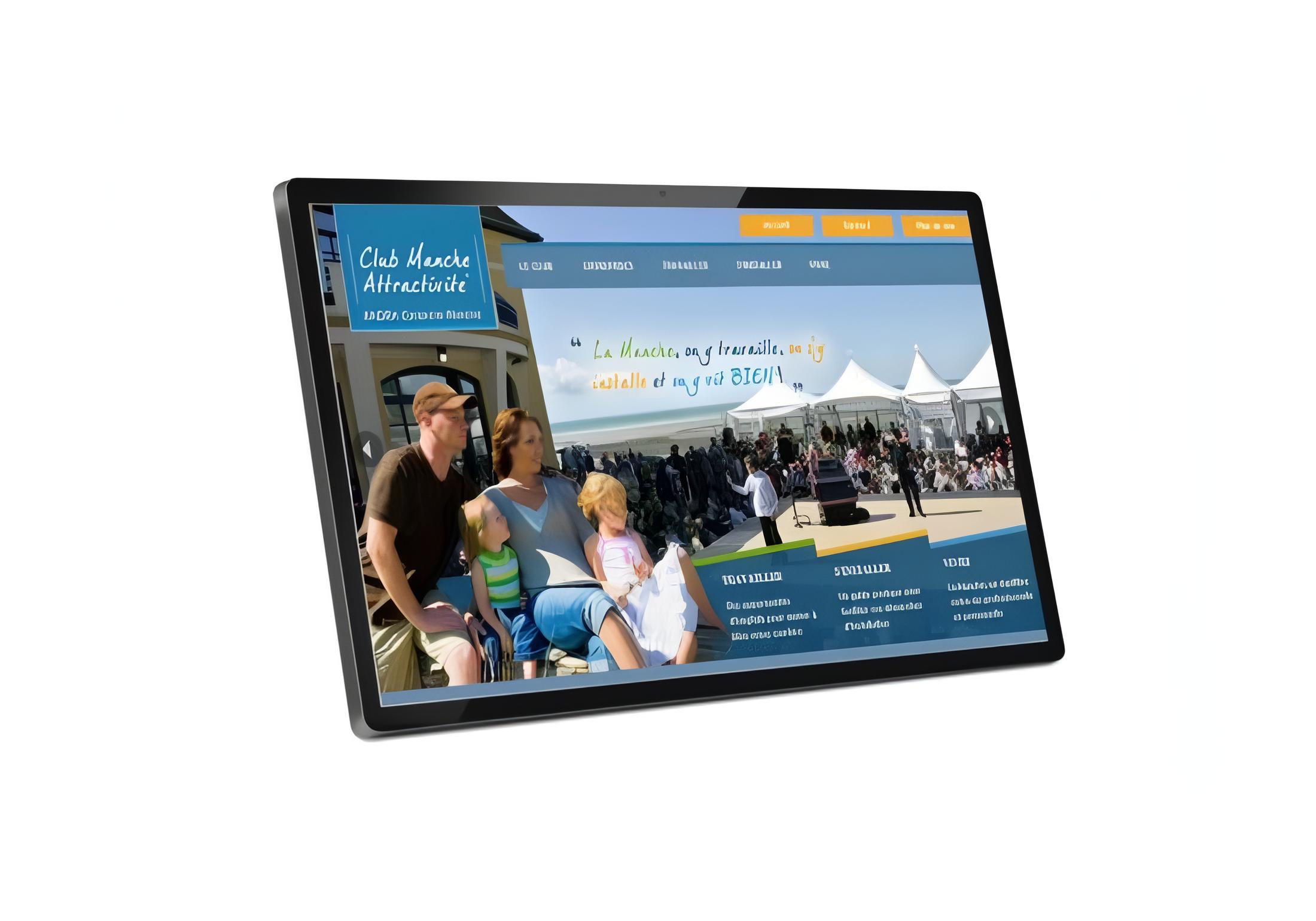

43"Smart Signage Tablet Android All-In-One_SWRT430A

Introduction：

.RK3399 as standard (RK3566/RK3568 optional)

.Android OS

.4G DDR + 32G eMMC

.Front ITO G+G touch panel

.Metal housing

.Stereo speaker + 2M front camera

.USB x 2、SD/SDHC/MMC x 1

.RJ45(1000M)x1+WIFI(2.4/5G)

Model No.	SWRT430A
LCD	43" TFT 1920*1080 IPS
Touch Screen	43" capacitive touch screen,Support 10-points multi-touch.
CPU	RK3399 as standard (RK3566/RK3568 optional)
Multimedia	HD video decoder (4K@60fps and FHD 1080p@60fps)
	HD video encoder (1080p @ 30fps)
	GPU offers 3D graphic with OpenGL ES1/2/3.0 and OpenVG 1.1 DriectX11
	2D/3D GPU (Mali T764)
	Strong Power Manage Unit(PMU)
	I2S Master & Slave Interface for Audio
DDR/Flash	Dual Channel DDR3/L	4G DDR
	eMMC/NAND flash	32G
	Three-axis	Freescale MMA8452Q
Micophone	Built-in microphone
Operation System	OS	Android OS (Linux optional)
Wi-Fi	WiFi	IEEE 802.11 a/b/g/n, Built-in WiFi(2.4G/5G)+Bluetooth 4.0 )
Ethernet	RJ45	RTL8211E 10M/100M /1000M
Standard Applications	Music	MP3,WMA,WAV,OGG,AAC,FLAC,3GP…
	Video Player	MPEG1/2/4,AVI,WMV,MKV,MOV,VP8, H.263/264/265…
	Gallery	JPG,BMP,PNG…
	Browser	Internet browse
	Play Store	Apps in Google Play Store
	Adobe Flash Player	V11.1 or later
	HTML5	Support
	DLNA	Digital Living Network Alliance
	Multi Window	Support
I/O	Mini USB port 1	For OTG( TP control signal out as HDMI input)
	USB TYPE A	USB2.0*2
	DC Power	DC 19V 4A, Diameter 5mm
	Button	Power
	HDMI	HDMI OUT/IN(OPTIONAL)
	SD card slot	For SD card
	Earphone	20mW @ 16 Ohms ,Stereo,Diameter 3.5mm earphone jack
	Speaker	Built-in speaker upto 4Ω/5W x 2
	Camera	Optional front camera 30W Or 200W
Size & Other	Size	1002.9 x 591.3 x 40.9
	Net Weight	20.6KG
	VESA wall mounting	400 mm x 200 mm
	Gross Weight	22.43KG
	Package Size	1217mm230mm805mm
	Housing materia	Metal
