24' tablet android with wifi/motion sensor/VESA hole for lcd display_SWRT240A

分享

Related Products






Introduction:

.RK3399 as standard (RK3566/RK3568 optional)

.Android  OS

.4G DDR + 32G eMMC

.Front ITO G+G touch panel (10 point)

.ABS+PC housing

.Stereo speaker + 2M front camera

.USB x 2、SD/SDHC/MMC x 1

.RJ45(1000M)x1+WIFI(2.4/5G)

.POE function(optional)



Model No. SWRT2401
LCD 24" TFT 1920*1080 IPS
Touch Screen 24"  capacitive touch screen,Support 10-points multi-touch.
CPU RK3399 Standard (RK3566/RK3568 Optional)
Multimedia HD video decoder (4K@60fps and FHD 1080p@60fps)
HD video encoder (1080p @ 30fps)
GPU offers 3D graphic with OpenGL ES1/2/3.0 and OpenVG 1.1 DriectX11
2D/3D GPU (Mali T764)
Strong Power Manage Unit(PMU)
I2S Master & Slave Interface for Audio
DDR/Flash Dual Channel DDR3/L 4G DDR
eMMC/NAND flash 32G
Three-axis Freescale MMA8452Q
Micophone   Built-in microphone
Operation System OS Android OS (Linux Optional)
Wi-Fi WiFi AP6330 Module(Broadcom IEEE 802.11 a/b/g/n, Built-in WiFi(2.4G/5G)+Bluetooth 4.0 )
Ethernet RJ45 RTL8211E 10M/100M /1000M
Standard Applications Music MP3,WMA,WAV,OGG,AAC,FLAC,3GP…
Video Player MPEG1/2/4,AVI,WMV,MKV,MOV,VP8, H.263/264/265…
Gallery JPG,BMP,PNG…
Browser Internet browse
Play Store Apps in Google Play Store
Adobe Flash Player V11.1 or later
HTML5 Support
DLNA Digital Living Network Alliance
Multi Window Support
I/O Mini USB port 1 For OTG
USB TYPE A USB2.0*2
DC Power DC 12V 3A, Diameter 4mm
Button Power
HDMI HDMI OUT(OPTIONAL)
SD card slot For SD card
Earphone 20mW @ 16 Ohms ,Stereo,Diameter 3.5mm earphone jack
Speaker Built-in speaker upto 4Ω/5W x 2
Camera Optional front camera 30W Or 200W
Size & Other Size 595.5*363*43.6
Net Weight 4.543KG

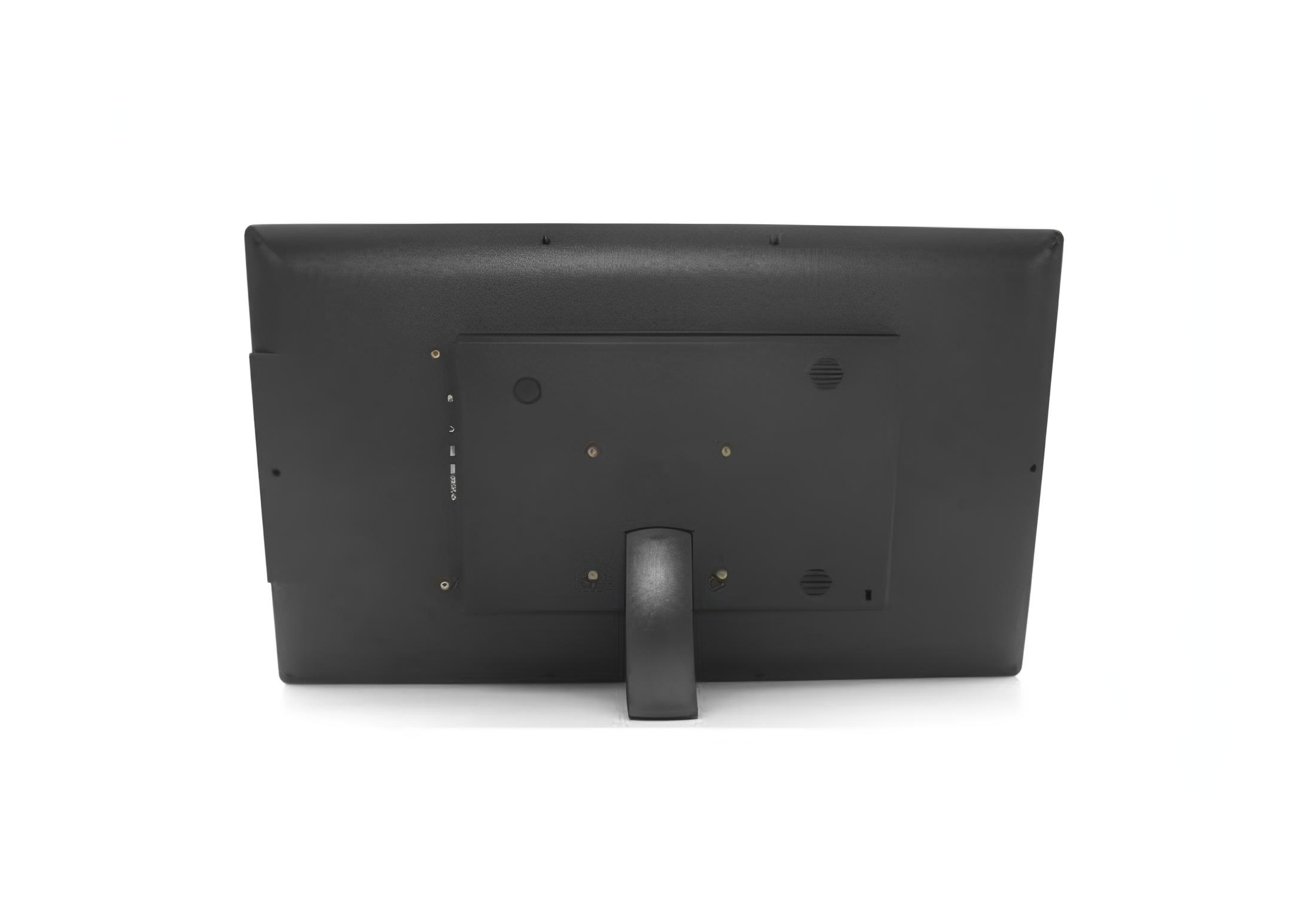

VESA wall mounting 100 mm x 100 mm
Gross Weight 4.953KG
Package Size 648mmx110mmx513mm   Carton:665mm*355mm*540mm
Housing materia Plastic (ABS+PC)
