Specifications
|
|
Processor
|
Intel® 14th Ultra Processor (125U/125H)
|
|
Chipset
|
Intel® SOC
|
|
Graphics
|
Intel®Graphics
|
|
Display Output
|
LVDS/EDP+DP+HDMI (HDMI2.1 supports 8K@60Hz)
|
|
Multi-Display Support
|
Triple-display synchronous/asynchronous output
|
|
USB
|
2*USB3.2 Gen2 (10Gbps) + 8*USB2.0
|
|
Memory
|
1*SO-DIMM DDR5 5600MHz Max48GB
|
|
Audio
|
Onboard ALC897 audio codec; Independent amplifier NS4251 3W@4Ω
|
|
LAN
|
Onboard 1 × Intel I219LM + I226-V (compatible with I226-LM) LAN (supports vPro)
|
|
Storage
|
1 × M.2 M Key, supports SATA/PCIe x4 auto-detection; 1 × SATA3.0 port
|
|
Expansion Slots
|
1 × M.2 B Key for 4G/5G module expansion;
1 × M.2 E Key for WIFI6/Bluetooth, supports CNVi
|
|

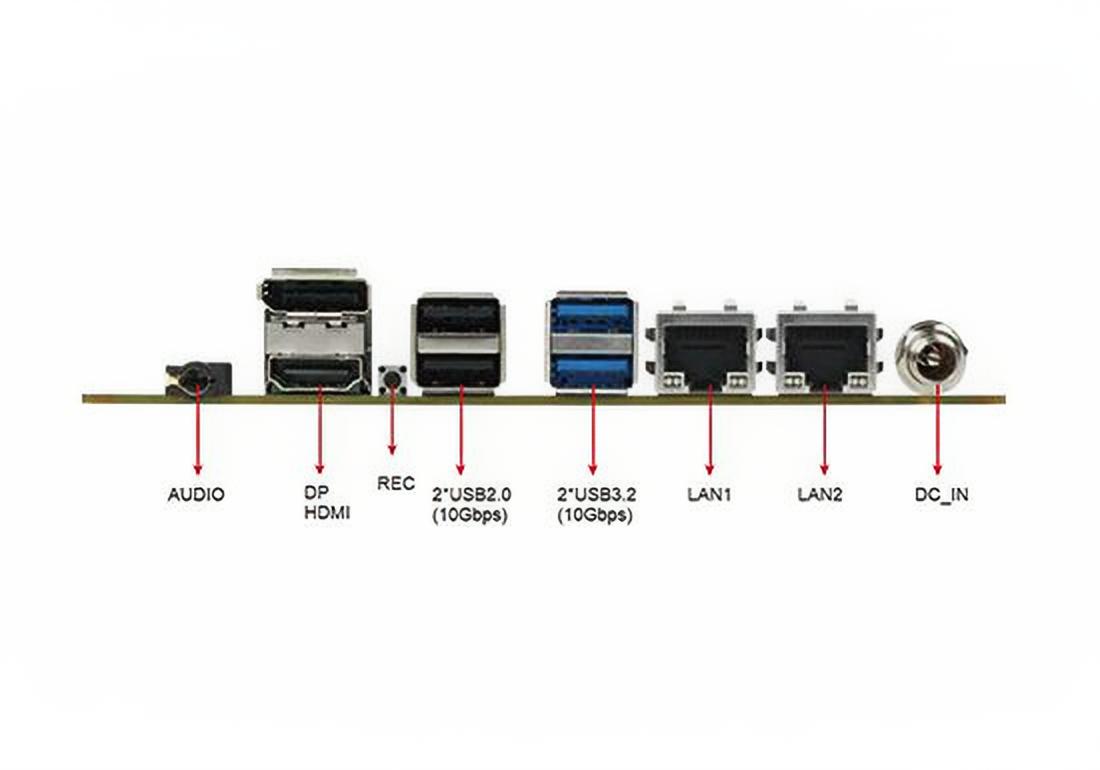

Rear I/O Ports
|
1*AUDIO port
|
Internal I/O Headers
|
1*F_AUDIO header
1*SPEAKER header
3*USB headers (expandable to 6 USB2.0 ports)
1*F_PANEL header
1*GPIO (4-channel)
1*JPS2 header
1*SATA port
|
1*SATA_PWR header
1*BKCL header
1*LVDS header
1*INVCN header
6*COM header
1*CPU_FAN header
1*ATX Phoenix terminal
|
|
1*DP+1*HDMI double-layer socket
|
| 1 × REC button (supports one-key system backup/restore and CMOS clear) |
|
2*USB2.0
2*USB3.2
|
|
1*LAN1 port
|
|
1*LAN2 port
|
|
1*DC_IN port
|
|
I/O Chip
|
IT8786E
|
|
BIOS
|
AMI BIOS
|
|
Power Supply
|
DC 9V-36V Wide-voltage power supply
|
|
Cooling System
|
Default fanless cooler: ST00000140;
Optional with fan cooling system: ST00000229
|
|
Environment
|
Operating: 0~60℃; Storage：-20℃~75℃；0% ~ 95% relative humidity, non-condensing
|
|
Motherboard Dimensions
|
146 x 102 mm
|
