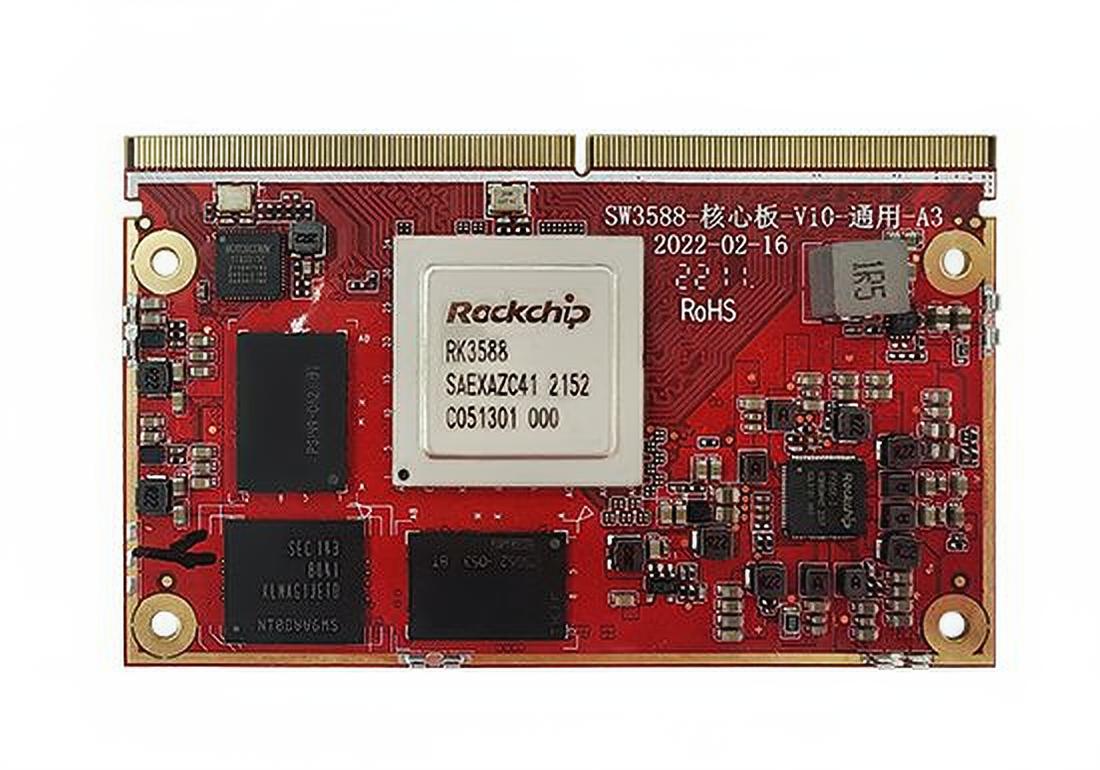

SW3588-Core Board-V10-General-A3

TYPE C	Two full-featured TYPEC interfaces, compatible with system firmware upgrade channel and DP1.4 output interface.
USB2.0 HOST0/1	Two USB2.0 Standard-A interfaces, supporting connection of devices such as mouse, USB flash drive, USB HUB, etc.
MIPI DCPHY	Supports input of two 4-lane MIPI DPHY or two 3-lane MIPI CPHY signals.
MIPI DPHY	Supports input of two 4-lane or four 2-lane MIPI signals.
HDMI2.1 OUT	Two HDMI2.1 OUT Standard-A interfaces, each supporting up to 8K@60Hz output.
MIPI DPHY0/1 TX	Supports output of two 4-lane MIPI signals via FPC cable connection.
VGA OUT	DP signal converted to VGA output.
PCIe WIFI (2T2R WIFI6 & BT5.0)	WIFI model SKO.WBD80P.1, equipped with external SMA antenna, supporting wireless internet access.
Ethernet	Supports 2 RJ45 interfaces for 10/100/1000M Ethernet.
Audio Interface	Supports speaker and headphone audio output, as well as single MIC recording.
SATA3.0 Interface	Two 7-pin SATA interfaces.
PCIe3.0 Interface	One standard PCIe x4 interface for expansion of PCIe devices.
UART Debug	Used for user debugging and log viewing; supports TYPEC and MINI USB interfaces.
JTAG	System JTAG debug interface.
System Key	Includes Reset, MASKROM, PWRON, V+/Recover, V-, MENU, ESC keys.
SPDIF	Supports digital audio interface.
