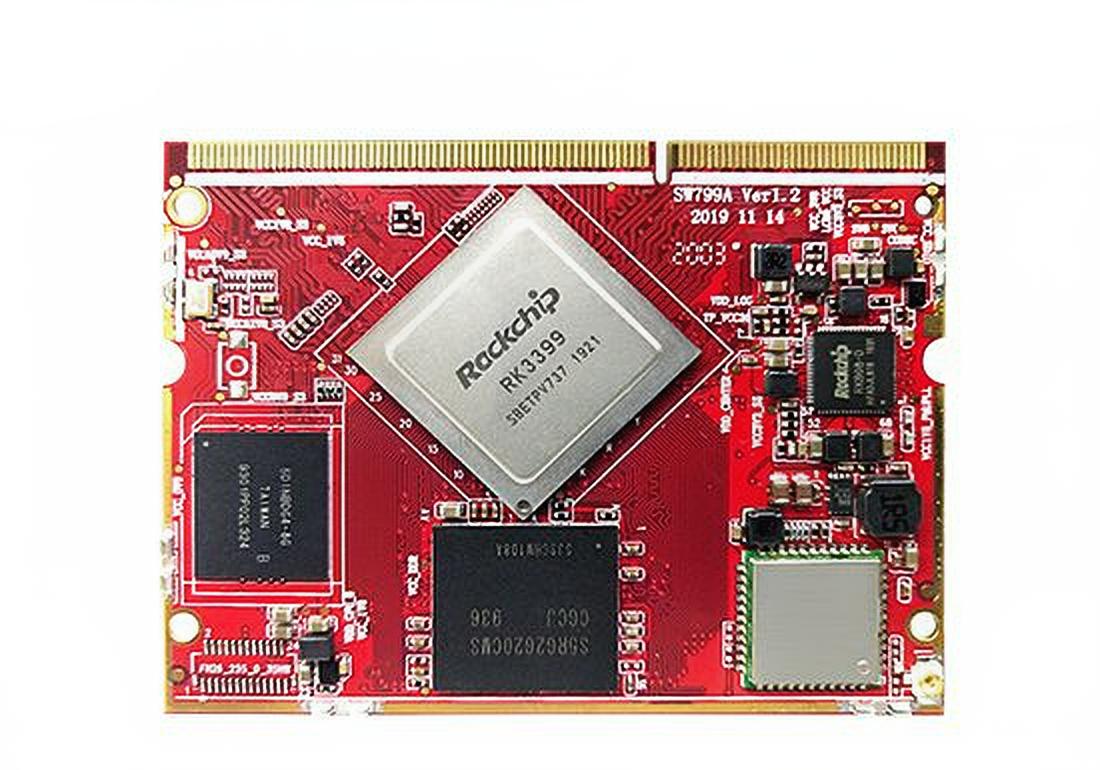

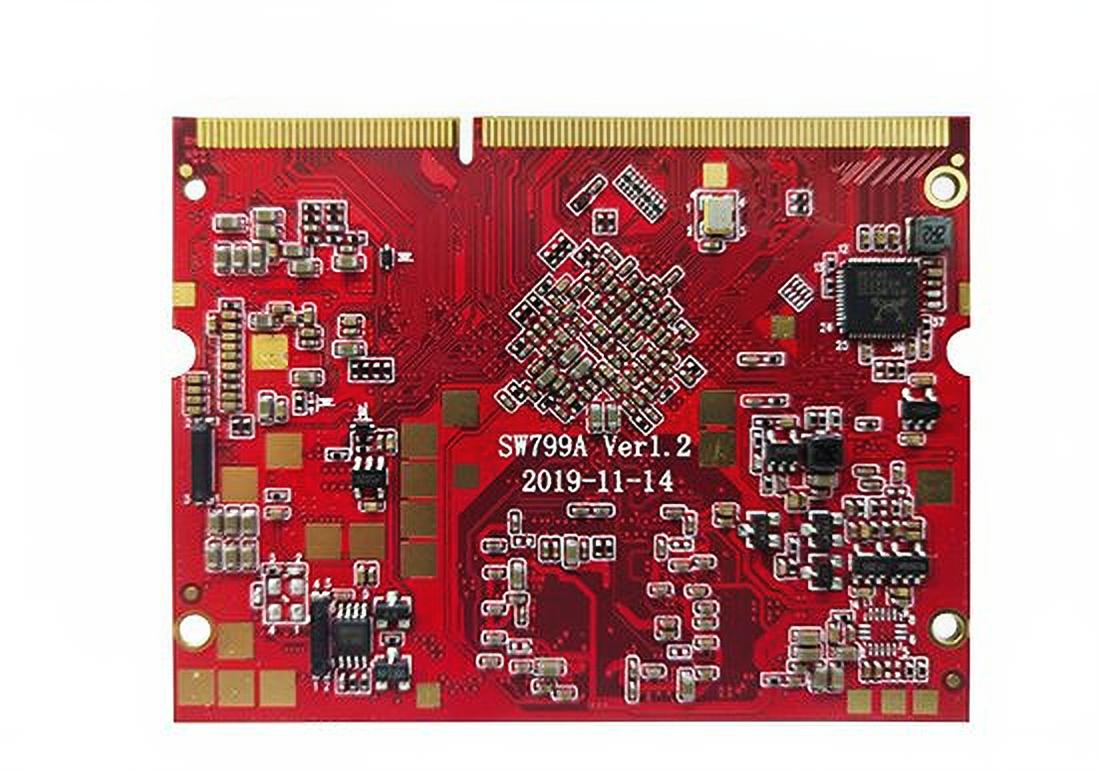

SW799A VER1.2

Main Hardware Specifications
Board Configuration	Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz Mali-T860MP4 GPU, SAMSUNG DDR4L 4GB, SanDisk eMMC 16GB (32/64GB optional)
Decoding Resolution	Supports decoding of H.264 1080p@60fps in almost all formats, decoding of H.265 1080p@60fps, encoding of H.264 1080p@30fps, as well as high-quality JPEG encoding and decoding.
Main Functions
Operating System	Android 7.1.2
APP Functions	Customizable according to customer requirements.
Multimedia Support
Media Formats	Supports mainstream video formats including MPEG1, MPEG2, MPEG4, H.264, H.265, WMV, MKV, TS, FLV, etc.; supports audio formats such as MP3; supports image formats including JPG, JPEG, BMP, PNG, GIF, etc.
Basic Interfaces
Power interface		× 1
Ethernet		× 1，1000M Ethernet
USB OTG		× 1，Type-C physical interface
USB 2.0		× 2 External
Printer Serial Port		× 1 （UART2）
I2C Touch		× 2
Earphone Interface		× 1
Speaker		× 1
DP		× 1
EDP		× 1 (shared with HDMI interface)
SIM Card Slot		1 × NANO
Additional Functions
RTC Clock	Equipped with real-time clock circuit
Watchdog Reset	Built-in watchdog for automatic recovery in case of abnormality
Optional Functions
Storage	Default: 4GB + 16GB. DDR: 8/16GB optional; eMMC: 16/32/64GB optional.
Display	Dual-screen dual-touch, dual-screen different display
Speaker	8 Ω 3W
G-Sensor	Gravity sensing function
Memory Card Expansion	Supports SDMMC 2.0/3.0, up to 64GB
Other Function Expansion	Supports functional modules with USB/RS232/UART protocol communication (software debugging required)
Electrical Specifications
Input Power	Input Power: 12V/3A DC power input (optional, depending on the power of the amplifier speaker, display and backlight)

PCB Dimensions and Specifications:

Length 144.6 mm, Width 119.2 mm, Thickness 1.6 mm.
Screw Hole Specification: Diameter 3.0 mm.

SW799A VER1.2
