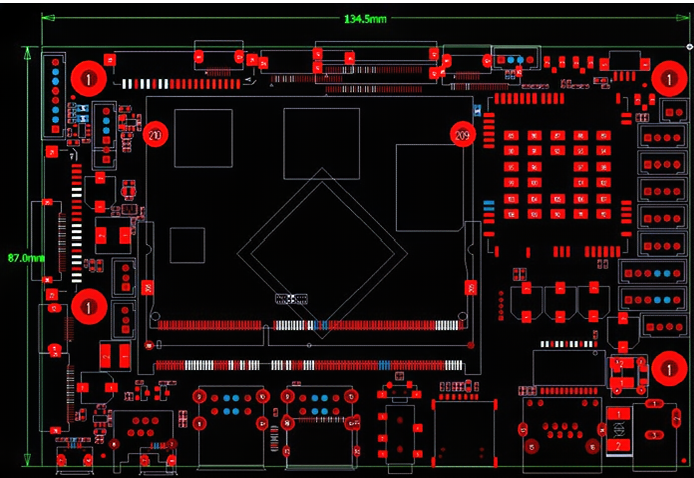

Board Configuration

• Dual-core Cortex-A72 up to 1.8GHz
• Quad-core Cortex-A53 up to 1.4GHz
• Mali-T864 GPU
• Chip: RK3399 (Rockchip）

Decoding Resolution

Supports almost all formats of H.264 1080p@60fps decoding, H.265 1080p@60fps decoding, as well as H.264 1080p@30fps encoding and high-quality JPEG encoding/decoding.

Main Functions

Operating System

Android 7.1.2

APP Functions

Customizable according to customer requirements.

Multimedia Support

Media Formats

•  Video: Supports mainstream video formats including MPEG1, MPEG2, MPEG4, H.264, H.265, WMV, MKV, TS, FLV, etc.

• Audio: Supports audio formats such as MP3.
• Image: Supports image formats including JPG, JPEG, BMP, PNG, GIF, etc.

Basic Interfaces

Power interface

× 1

Ethernet interface

× 1，10/100M/1000M Ethernet

USB OTG Interface

× 1，WIFI(802.11a/b/g/n),compatible with 2.4G and 5G

USB OTG interface

× 1 MICRO_USB_5PIN

USB2.0  interface

× 2 USB HOST Interfaces

Printer Serial Port

× 1 （UART2）

I2C Touch Interfaces

× 2

Speaker

× 1

MIPI

× 2

DP

× 1

EDP

× 1

HDMI

× 1

Additional Functions

RTC  Clock

Equipped with real-time clock circuit

Watchdog Reset

Built-in watchdog for automatic recovery in case of abnormality

Optional Functions

Storage

Default 4GB + 8GB

Display

Single screen with single touch

Speaker

Supports 2 groups

Audio Output

3.5mm earphone jack

G-Sensor

Gravity sensing function

Memory Card Expansion

Supports SDMMC 2.0/3.0, up to 64GB

Other Function Expansion

Supports functional modules with USB/RS232/UART protocol communication (software debugging required)

Electrical Specifications

Input Power

Input Power: 12V/3A DC power input (optional, depending on the power of the amplifier speaker, display and backlight)
