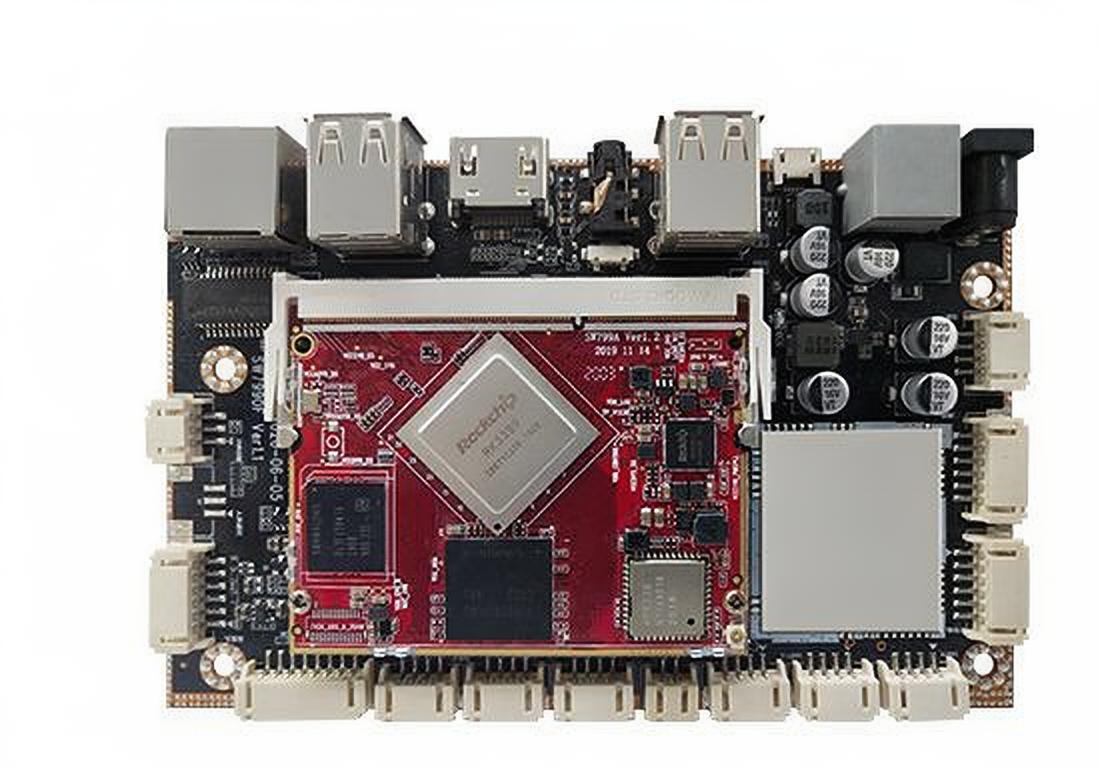

Board Configuration

• Dual-core Cortex-A72 (up to 1.8GHz)
• Quad-core Cortex-A53 (up to 1.4GHz)
• Mali-T860MP4 GPU
• Chip: RK3399 (Rockchip)

Decoding Resolution

Supports decoding of almost all formats including H.264 1080p@60fps and H.265 1080p@60fps. Also supports H.264 1080p@30fps encoding as well as high-quality JPEG encoding/decoding.

Main Functions

Operating System

Android 7.1.2

APP Functions

Customizable according to customer requirements.

Multimedia Support

Media Formats

• Video: Supports mainstream video formats such as MPEG1, MPEG2, MPEG4, H.264, H.265, WMV, MKV, TS, and FLV.
• Audio: Supports audio formats such as MP3.
• Images: Supports image formats such as JPG, JPEG, BMP, PNG, and GIF.

Basic Interfaces

Power interface

× 1

Ethernet interface

× 1，10/100M/1000M Ethernet

WiFi interface

× 1，WIFI(802.11a/b/g/n),compatible with 2.4G and 5G

USB OTG interface

× 1

USB2.0  interface

× 7 USB 2.0 USB HOST Interfaces

I2C Touch Interfaces

× 2

Expansion Functions

RS232 *2/UART*2，DBUG*1

MIPI

× 2

DP/EDP

× 2

HDMI

× 1

Speaker

× 2

TF

× 1

4G Module

× 1 4G/7 modes, external SIM card slot

Additional Functions

RTC (Real-Time Clock)

12V3A optional  DC power input（Power for amplifier, speakers, display panel and backlight excluded）

Watchdog Reset

Adopts internal watchdog for automatic recovery

Electrical Specifications

Input Power

12V 3A (optional DC power input; power of power amplifier, speaker, display and backlight shall be additional).
