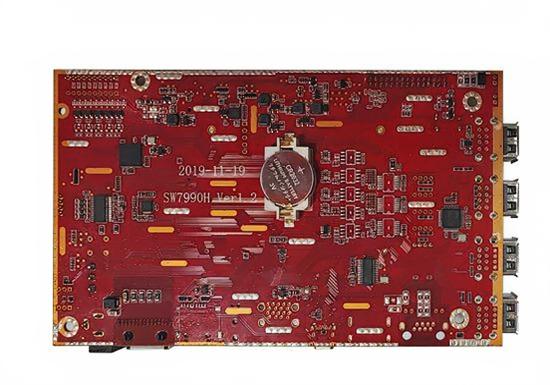

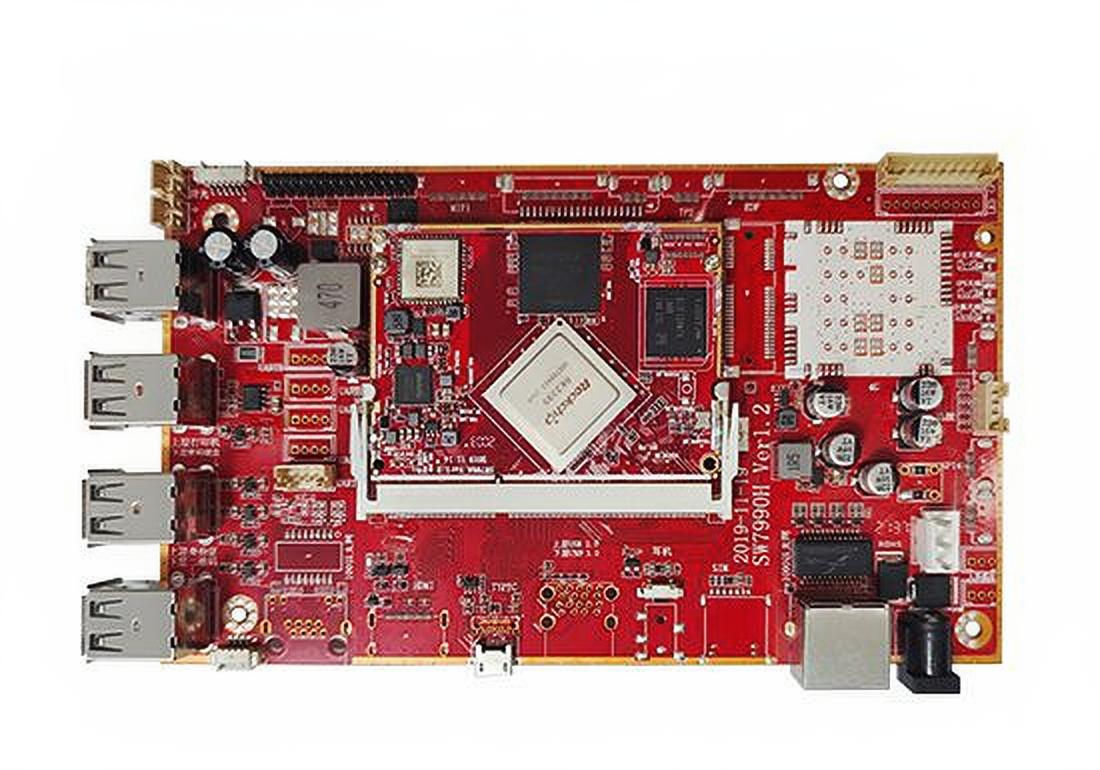

SW3399-MB-V10-G1-A0-00

CPU	RK3399
ROM	16GB EMMC5.1
RAM	4GB LPDDR
Operating System	Android
Ethernet	1000M
WIFI	IEEE 802.11 b/g/n (2.4GHz), single antenna
Bluetooth	BT 4.2
USB	USB OTG ×1 USB 2.0 ×2
HDMI	1× HDMI 2.0
4G Module	Supported
Serial Port	UART/RS485/RS232 (optional)
TF Card	External TF card supported for system storage expansion
Camera	Supports USB camera
LVDS	Supported
MIPI	Supported
EDP	Supported
Earphone	Optional earphone jack
Speaker	8 Ω 3W
Power Supply	12V input, DC005 jack / 3P×2.54 terminal optional
