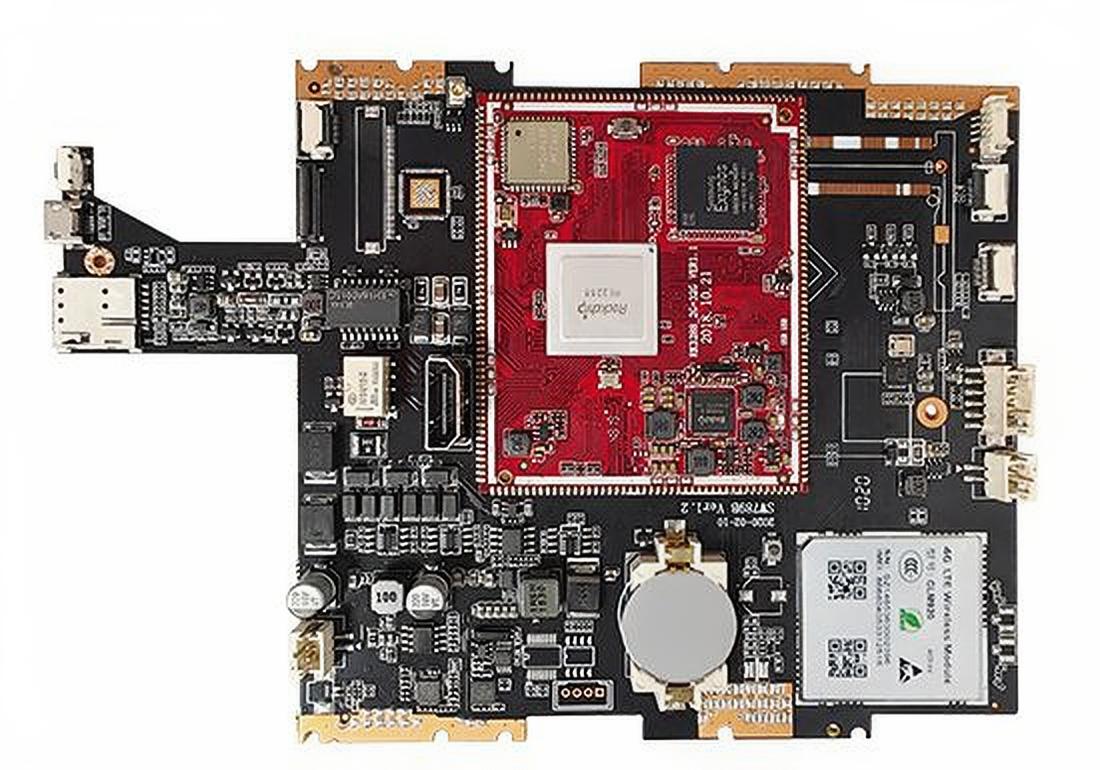

Board Configuration

Decoding Resolution

Supports 4K2k, H.265 hardware decoding, and point-to-point ultra-HD display

Main Functions

Operating System

Android 7.1.2

APP Functions

Customizable according to customer requirements.

Multimedia Support

Media Formats

Supports mainstream video formats including MPEG1, MPEG2, MPEG4, H.264, H.265, WMV, MKV, TS, flv; supports audio formats such as MP3; supports image formats including JPG, JPEG, BMP, PNG, GIF

Basic Interfaces

Power interface

× 1

Ethernet interface

× 1，10/100M Ethernet

WiFi interface

× 1, WIFI (802.11 b/g/n), 2.4G/5G

USB OTG interface

× 1

USB2.0 interface

USB HOST × 1 (one for external connection via flying wire, one 5P_2.0 reserved for 4G)

I2C Touch

× 1

Extended Function

RS232 *1/RS485, print serial port (UART2) can also be used as TTL, requires debugging software

MIPI

× 1

S/PDIF Input/Output

One input/one output

Relay

× 1

4G Module

× 1 4G/7-band, external NANO SIM card slot

Electrical Specifications

Input Power

12V 2A optional DC power input（Power for amplifier, speakers, display panel and backlight excluded）
