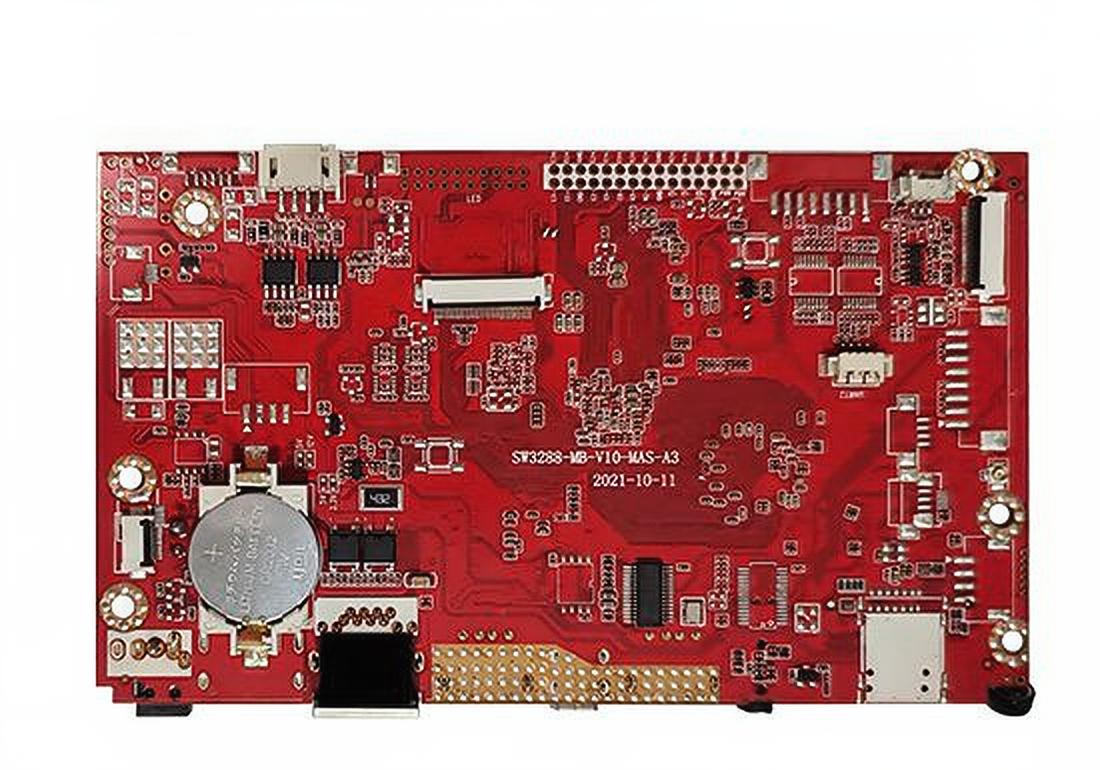

SW3288-MB-V10-MAS-A3

Introduction:

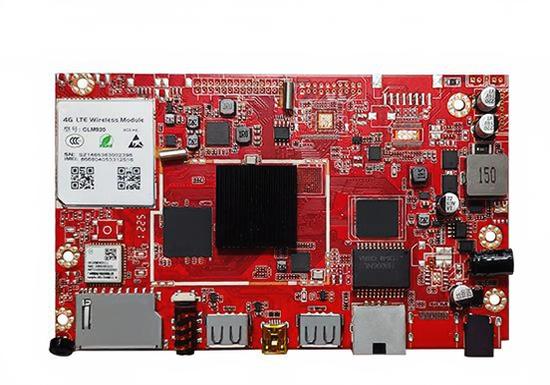

Optional 4G module

Suitable for all-in-one machines and advertising displays

CPU	RK3288
ROM	16GB EMMC
RAM	2GB LPDDR3
System	Android
Ethernet	1000M/100M
WIFI	IEEE 802.11 a/b/g/n/ax 1T1R (WIFI6), single antenna
BT	BT 5.2
USB	3 × USB 2.0 Type-A (one shared with HDMI) 1 × USB 2.0 Mini USB 2 × USB 2.0 4P-2.0 2 × USB 2.0 4P-1.25
Serial Port	3 channels optional UART/RS232
4G	Optional
TF Card	External SD card supported for expanding system storage capacity
LVDS	Dual-channel LVDS, selectable 5V/12V screen voltage
EDP	2 × EDP interfaces
TP	10-pFPC connector, 3.3V
Headphone Jack	Supported
MIC	Supported
Speaker	10W/CH into 8Ω @10% THD+N, supports left/right channels, optional 2p×2.0 or 4p×2.0 connectors
Power	2V input, optional DC023/DC044
RTC	Supported
Watchdog	Supported
TP	1 × I2C TP interfaces
Camera	Supports USB and CIF cameras
Sensor	Supports I2C and ADC interfaces

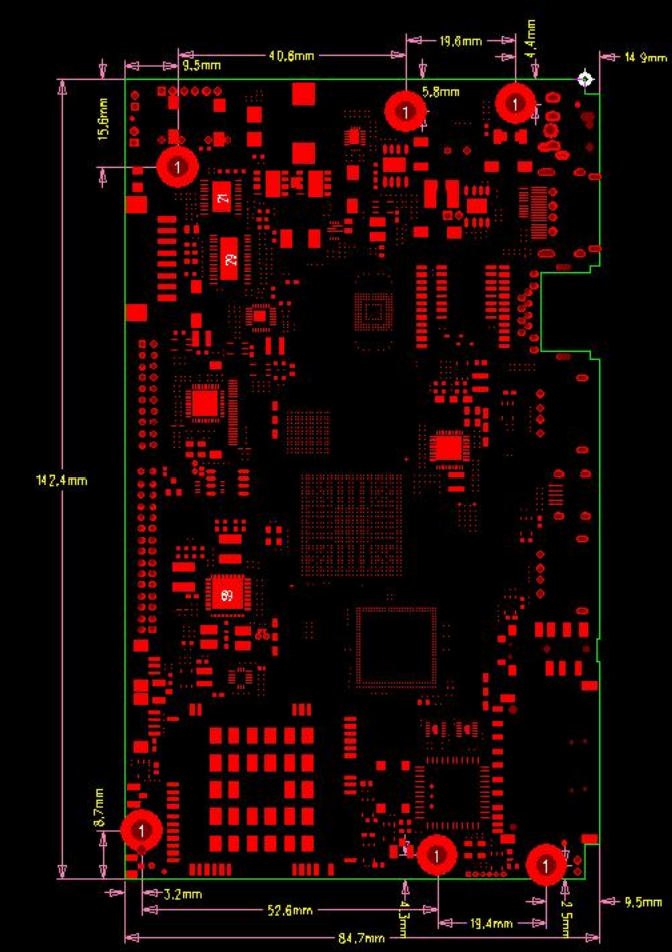

Screw hole specification: diameter 7.5, drill hole size 3.6
