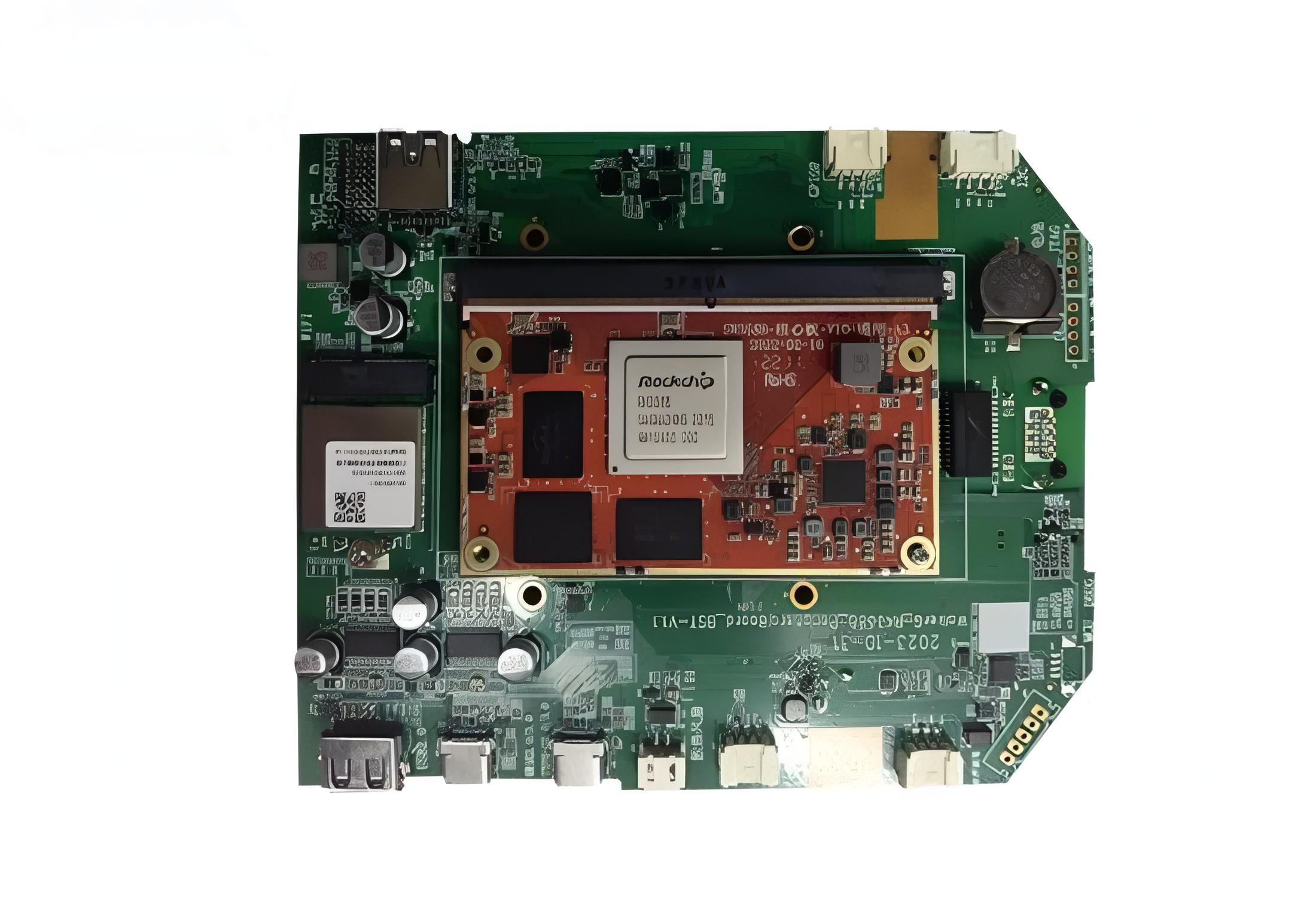

Board Configuration

Rockchip RK3588，

CPU8-core 64-bit 4*Cortex-A76 + 4*Cortex-A55，GPU ARM Mali-G610 MC4,OpenGL ES 1.1/2.0/3.1/3.2,Vulkan 1.1，1.2,OpenCL 1.1,1.2,2.0

Decoding Resolution

 Supports 8K、H.26 and VP9 hard decoding，ultra‑HD point‑to‑point display.

Main Functions

Operating System

Android 12

APP Functions

Customizable according to customer requirements.

Multimedia Support

Media Formats

Supports mainstream video formats including MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1 etc.

Basic Interfaces

Power interface

× 1

Ethernet interface

× 1，10/100M/1000M Ethernet

WiFi interface

× 1，WIFI(802.11a/b/g/n),compatible with 2.4G and 5G

USB OTG interface

× 2

USB2.0 interface

× 1

USB3.0 interface

× 3

I2C

× 2

MIPI

× 1

GPIO

× 3

PWM

× 2

ADC

× 1

Cooling fan

× 1

All-in-one cable

× 2

Speaker

× 2

TF

× 1

Electrical Specifications

Input Power: 12V3A optional  DC power input（Power for amplifier, speakers, display panel and backlight excluded）
